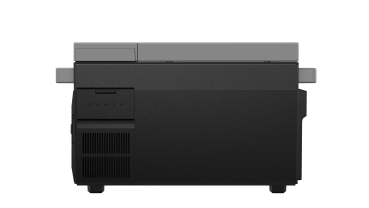

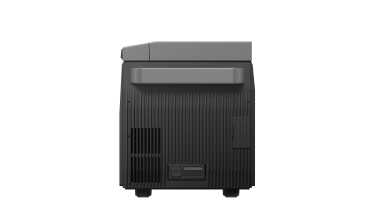

ECOFLOW GLACIER PORTABLE FRIDGE

Technical Specifications

Basic Information

• Model: EFBX100
• Climate Class: SN/N/ST/T
• Electric Shock Protection Type: Class II
• Operating Volume:
  • Single Zone: 38 l
  • Double Zone: 36 l
• Dimensions (L × W × H):
  • Without wheels and telescopic handle: 776 mm × 385 mm × 445 mm
  • With wheels and telescopic handle: 852.4 mm × 385 mm × 445 mm
• IP Protection Rating: IPX4

Operating Mode

• General Mode (Quick Freeze Mode) and Eco Mode
• Quick Freeze Mode (30 °C to 0 °C): 15 minutes
• Compressor Power: 120 W

Power Consumption

• Refrigerator: 0.18 kWh/24 h (ambient temperature 25 °C, set temperature 4 °C, Eco Mode)
• Freezer: 0.38 kWh/24 h (ambient temperature 25 °C, set temperature -18 °C, Eco Mode)

Refrigerant

• Type and Quantity: R600a, 32 g

Sound Pressure Level

• Ice Making: <52 dB(A)
• Temperature Maintenance: <42 dB(A)

Wi-Fi and Bluetooth

• Wi-Fi Frequency Range: 2422–2462 MHz, maximum output power: 15.87 dBm
• Bluetooth Frequency Range: 2.402–2.480 MHz, maximum output power: 4.83 dBm

Net Weight

• 23.3 kg (51.4 lbs)

Input Parameters

• AC Input Voltage/Frequency: 100–240 V, 50/60 Hz
• AC Input Power: 180 W
• Battery Power: 100 W (USB-C)
• Solar Charging Input: 240 W (11–60 V, 13 A max.)
• Car Charging Input: 96/192 W (12/24 V, 10 A max.)

Operating Environment

• Operating Temperature: -20 °C to +50 °C
• Storage Temperature: -20 °C to +60 °C
